200m Depth Water Well Drilling Truck Carrying Vehicle 6x4 266HP Load Vehicle Engine

Name: 200m Depth Water Well Drilling Truck Carrying Vehicle 6x4 266HP Load Vehicle Engine
Brand: RanCheng
Price: 1 USD

Quality 200m Depth Water Well Drilling Truck Carrying Vehicle 6x4 266HP Load Vehicle Engine for sale

Brand Name : RanCheng

Model Number : RCF200T

Certification : CE, ISO 9001:2000

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 100sets per Month

Delivery Time : 10-15 working days

Packaging Details : It can be shipped by ro-ro ship

Name : Water Well Drilling Rig

Model : RCF200T

Bore Diameter : 140 - 300mm

Bore Depth : 200m

Load Vehicle Engine : 266HP

Weight : 18T

Contact Now

200m Depth Truck Mounted Water Well Drill Rig Truck Carrying Vehicle 6x4

Product Description
The RCF200T truck mounted water well drilling rig is a newly designed deep well drilling rig, which is characterized by installing the drilling rig and air compressor and other components on the truck. This design makes the drill extremely portable and flexible, making it easy to use and transport. It adopts Dongfeng 6X4 vehicle-mounted design, which is very convenient to move. This drilling rig adopts top drive mode and can be used for both mud pump and air compressor.

Application
It is used in the fields of water resources exploration and development, geological exploration, mineral exploration, construction engineering and environmental engineering. They can drill deep wells to obtain groundwater resources, obtain underground rock formations and geological structure information, detect the presence and storage of mineral deposits, be used for drilling in foundation projects and water intake wells in groundwater treatment projects, as well as monitor groundwater levels and water quality, and carry out Environmental pollution investigation, etc.

Technical Parameters

Name	Unit	Parameter
Model	RCF200T
Dimension	mm	10600×2500×3550
Weight	kg	13
Aperture	mm	140-300
Drilling depth	m	200
Feed stroke	mm	3400
Travel speed	km/h	80
Grade ability	Max.	30°
Wind pressure	Mpa	1.7-3.0
Air consumption	m³/min	15-35
Drill pipe diameter	mm	φ89/ 102
Drill pipe length	m	3
Lifting force	T	18
Drilling rig Engine power	kw	70
Rotary speed	rpm	45-115
Rotation torque	N.m	6200-9000
Mud pump	450L/min	BW250 (optional item )
Carrying vehicle	Truck
Load vehicle engine	260HP
Driving form	6X4
Steering wheel	Right position
Air compressor	22/21,21m3/min ,21bar ,238KW Yuchai engine

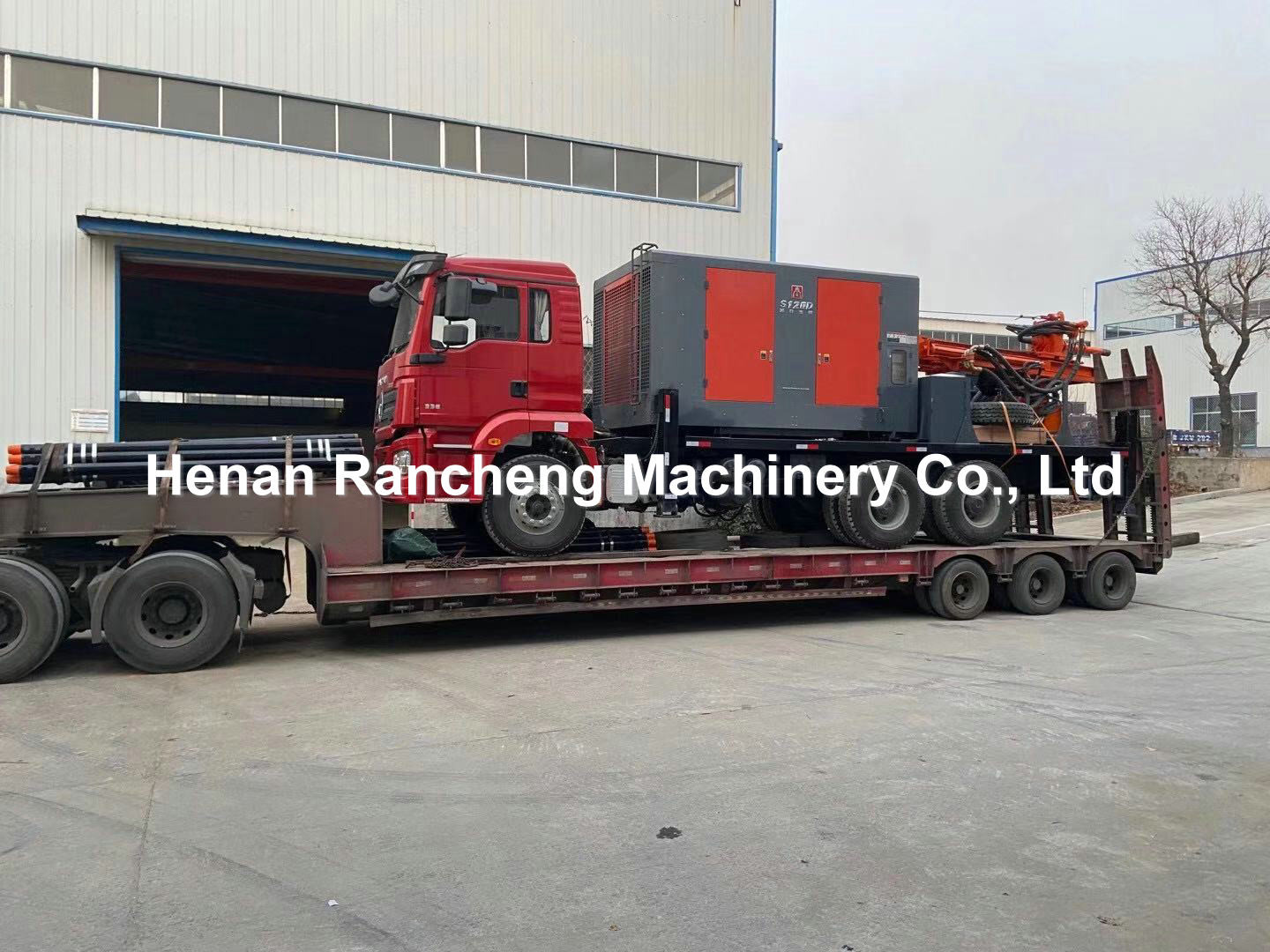

Machine picture display

200m Depth Water Well Drilling Truck Carrying Vehicle 6x4 266HP Load Vehicle Engine
