BW200 Horizontal Type Two Cylinder Double Action Pump of Drilling Rigs within 200m
Machine Introduction
BW200 mud pump is a horizontal double cylinder double action.Reciprocating piston pump, the existing crankshaft bush and bearing type of two kinds, mainly used in water well drilling or core drilling to supply flushing fluid.This pump has the characteristics of small volume and light weight, and is used for supporting the use of drilling RIGS within 200m for water well drilling and 600 meters for core drilling. Moreover, the attendance amount,the complex strata of the karst cave can also be used for cement slurry infusion.
Technical Parameters
| Model | BW200 |
| Type | horizontal type two cylinder double action pump |
| Cylinder diameter | 80,65mm |
| Piston stroke | 85mm |
| Frequency of stroke | 145 times/min |
| Flow rate | 200;125 l/min |
| Working pressure | 40;60(kg/cm) |
| Transmission power | 11KW |
| Diameter of discharge pipe | 37mm |
| Diameter of suction pipe | 65mm |
| Overall dimensions(L*W*H) | 1050*630*820mm |
| Weight | 300kgs |
Machine Advantages
BW200 grouting pump, excellent horizontal double-cylinder double-acting design, cylinder diameter differentiation, long piston stroke, high stroke frequency, ensure efficient and stable output. Adjustable flow to meet diverse needs, stable working pressure, adapt to various working conditions. Strong transmission power, smooth liquid flow, reduce clogging and wear. Widely used in geological drilling, water conservancy, construction, tunnels and other fields, grouting mud lifting effect is excellent, a powerful assistant for engineering projects.

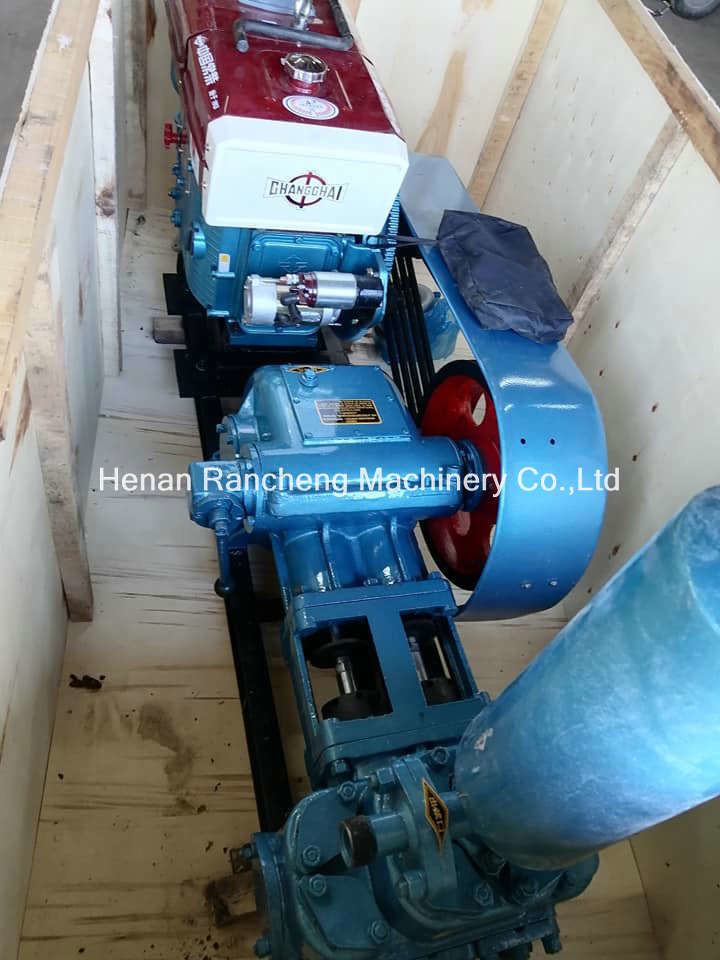

Machine Pictures
